Processing capacity: 12–150 t/h
Feeding size: 50–150 mm
Screen layer: 1–2
Screen size: 1–40 mm
Power: 0.5–5.5 kw
Material handling: slag, coal gangue, sand, gravel aggregate, etc

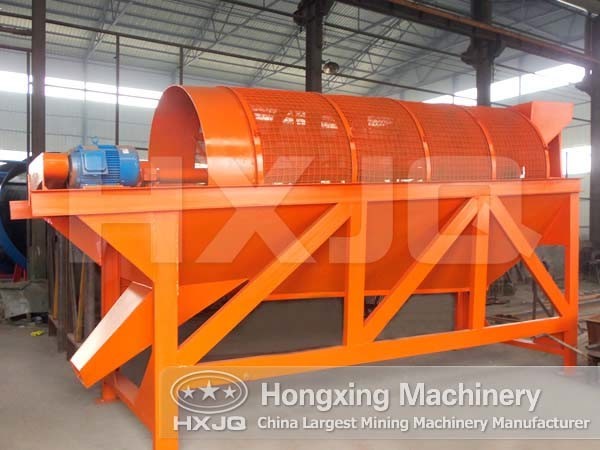

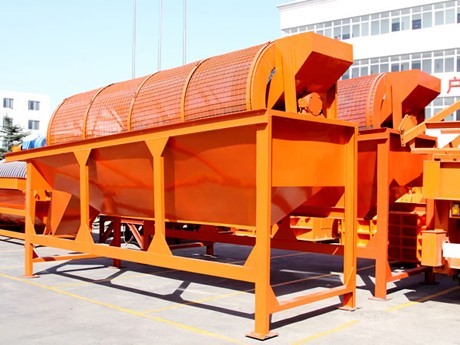

Drum screen is suitable for classifying powdery materials with outstanding screening effect. The screen mesh is 60-200; power is 0.75-3 kw and output is 500-1500 kg/h.
1. The angle of inclination of installation is small and the machine is not very easy to be blocked.
2. Drum screen covers a small size
3. Low noise and little powder dust pollution
4. Stable operation
5. High screening efficiency
6. Big output
7. Convenient installation
| Model | Capacity (t/h) | Power (kw) |
|
| Sieve hole(2mm) | Sieve hole(30mm) | ||
| YTS1230 | 4-12 | 16-50 | 5.5 |
| YTS1240 | 4.5-14 | 20-60 | 5.5 |
| YTS1250 | 5-15 | 23-70 | 5.5 |
| YTS1530 | 6-18 | 25-75 | 5.5 |
| YTS1540 | 6-18 | 25-75 | 7.5 |
| YTS1550 | 7-20 | 26-80 | 11 |
| YTS1560 | 7-22 | 33-100 | 11 |
| YTS2040 | 8-25 | 40-120 | 11 |
| YTS2050 | 10-30 | 50-150 | 11 |
| YTS2060 | 12-35 | 55-175 | 11 |
