Capacity: 6912–322560 m³/min
Gas consumption: 0.27–16.7 m³/min
Number of filter bag: 96–3584
Dust collection efficiency: 99.8 %
Weight: 2.4–84.0 t
Application range: building materials, cement, metallurgy, chemical and refractory industry

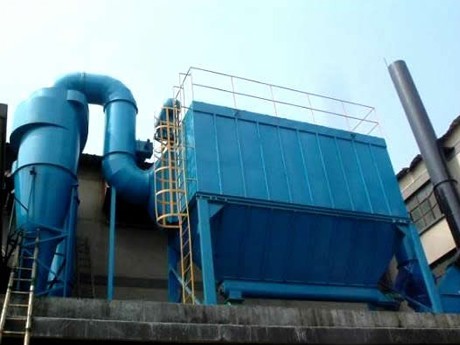

PCC plenum pulse bag type dust collector is widely used in building material, cement, metallurgy, machinery, chemistry and refractory industry, and is especially suitable for collecting the dust produced in the cement crushing and grinding, transportation and packaging in the cement plant, and this equipment has strong adaptability.
According to the specific condition of the processing site, this series of dust collector can flexibly design online or offline high-efficiency and even ash cleaning system. According to the specific need and the system pressure, it can choose high pressure and low pressure and online and offline impulse to clean the ash. The operating life of the pulse valve is over 5 years and the operating life of the filter-bag is over 2 years. This equipment has low operational cost, and it adopts compressed air energy injection drainage to ensure the ash cleansing pressure of the bottom of the filter bag.
Dusty gas goes in from the air intake of the dust catcher and into the ash bucket through the partition board, and at the same time the air flow slows down. Due to the inertia, the coarse particles in the gas will fall into the ash bucket, and the fine dust particles will go up along with the gas and into the filtering chamber. The powder dust will stick onto the surface of the filter bag, and the purified gas will go into the upper cleaning room through the filter bag and be sucked by the main air blower of the dust collecting system and discharged into the air.
Model | Processing Air Quantity(m3/min) | Air Speed in Filter Bag(m/min) | Filtering Area(㎡) | Number of Filter Bag | Gas Consumption(m³/min) | Equipment Resistance(Pa) | Dust Collection Efficiency(%) | Heat Preservation Area(㎡) | Weight(t) |
32-3 | 6912 | 1.0-1.2 | 96 | 96 | 0.27 | 1500-1700 | 99.8 | 26.5 | 2.4 |
32-4 | 9216 | 128 | 128 | 0.37 | 34 | 3.4 | |||
32-5 | 11520 | 160 | 160 | 0.48 | 41 | 4.4 | |||
32-6 32-4 32-5 |
13824 18432 23040 |
192 256 320 |
192 256 320 |
0.55 1.2 1.5 |
48.5 70 94 |
5.4 8.9 10.8 |
|||
64-6 | 27648 | 384 | 384 | 1.8 | 118 | 11.7 | |||
64-7 | 32256 | 448 | 448 | 2.1 | 142 | 13.8 | |||
64-8 | 36864 | 512 | 512 | 2.4 | 166 | 14.5 | |||
96-4 | 27648 | 384 | 384 | 1.2 | 110 | 11.7 | |||
96-5 | 34560 | 480 | 480 | 1.5 | 120 | 13.8 | |||
96-6 96-7 96-8 96-9 96-2*5 |
41472 48384 55296 62208 69120 |
576 672 768 864 960 |
576 672 768 864 960 |
1.8 2.4 2.4 2.7 3.0 |
130 140 150 160 175 |
15.5 47.2 20.2 21.6 21.0 |
|||
96-2*6 | 82944 | 1152 | 1152 | 3.4 | 210 | 25.2 | |||
96-2*7 | 96768 | 1344 | 1344 | 4.2 | 245 | 29.4 | |||
96-2*8 | 110592 | 1536 | 1536 | 4.8 | 280 | 33.6 | |||
96-2*9 | 124416 | 1728 | 1728 | 5.4 | 315 | 37.8 | |||
96-2*10 128-6 128-9 128-10 |
138240 69120 103680 115200 |
1920 690 1440 1600 |
1920 768 4452 1280 |
6.0 3.6 5.4 6.0 |
350 125 196 205 |
42.0 20.1 26.4 28.9 |
|||
128-2*6 | 138240 | 1920 | 1536 | 7.0 | 232 | 36.6 | |||
128-2*7 |
161280 | 2240 | 1792 | 8.3 | 247 | 43.9 | |||
128-2*8 | 184320 | 2560 | 2048 | 9.5 | 262 | 50.0 | |||
128-2*9 | 207360 | 2880 | 2304 | 10.7 | 277 | 55.4 | |||
128-2*10 128-2*11 128-2*12 128-2*13 |
230400 253440 276480 299520 |
3200 3520 3840 4160 |
2560 2516 3072 3328 |
12 13.4 14.3 15.5 |
292 307 322 337 |
60.0 65.4 72.0 78.0 |
|||
128-2*14 | 322560 | 4480 | 3584 | 16.7 | 352 | 84.0 |
