Production capacity: 10–300 m³/h
Feeding granularity: ＜5mm–＜30 mm
Chain speed: 12-30 m/min
Trough width: 150–600 mm
Motor power: 2.2–45 kw
Application range: building materials, construction, chemical industry, metallurgy, mining, food processing, transportation, etc

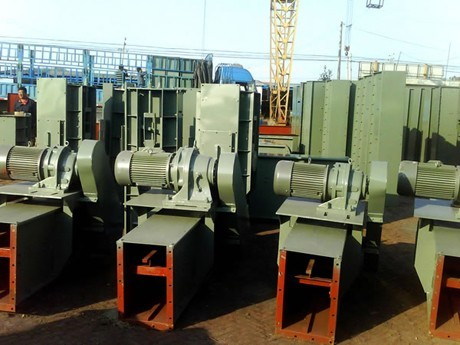

FU chain conveyor is a mechanical product which is used for continuously conveying powdery and granulate materials and it is widely used in building material, chemistry, metallurgy, mine, food processing, machinery, transportation and port and pier.
Since this product has many advantages such as reasonable design, unique structure, long service life, reliable operation, energy conservancy and high efficiency, safe sealing and convenient maintenance, and in addition, the conveying distance can be flexibly designed and arranged according to the specific requirement and this machine can be horizontally installed or the installation angle is ≤15°, its using performance is obviously superior to chute type spiral conveyor, embedded scraper conveyor and other conveying machines.
Materials evenly go into the bottom of the chute from the feeding mouth of the equipment and are continuously and evenly conveyed by the load bearing scraper conveying chain which is continuously running from the machine tail to the machine head from the feeding mouth to the discharging mouth and discharged. This machine can realize multiple feeding and multiple discharging.
| Item/Model | FU150 | FU200 | FU270 | FU350 | FU410 | FU500 | FU600 |
| Trough Width(mm) | 150 | 200 | 270 | 350 | 410 | 500 | 600 |
| Conveying Ability(m3/h) | 10-20 | 10-30 | 20-60 | 35-100 | 50-130 | 80-200 | 180-300 |
| Chain Speed(m/min) | 11-22 | 11-22 | 11-22 | 14-21 | 14-21 | 12-30 | 13-26 |
| China Pitch(mm) | 125 | 125 | 185 | 200 | 200 | 300 | 300 |
| Conveying Distance(m) | 8-50 | 8-50 | 8-50 | 8-50 | 8-50 | 8-50 | 8-50 |
| Conveying Dip(°) | ≤15 | ||||||
| Motor Power(kw) | 2.2-7.5 | 2.2-7.5 | 3-15 | 4-22 | 4-30 | 5.5-45 | 11-45 |
| Installation Method of Drive Device | Left-side installtion, right-side installation and back-side installation | ||||||
| Drive Type | Chain drive | ||||||
| Applicable Size(mm) | ＜5 | ＜5 | ＜7 | ＜9 | ＜11 | ＜25 | ＜30 |
| Applicable humidity(%) | ≤5 | ||||||
| Applicable Temperature(℃) | ≤150 | ||||||
